Art.Nr.: 10XX48

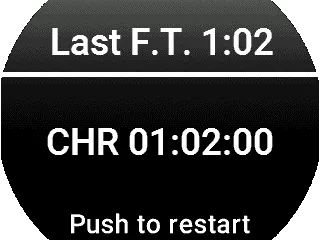

Omnia RPM is a multifunction engine tachometer with added functions like 4 Hobbs meters, chronometer, automatic flight timer, last flight RPM peak, max RPM peak ever. The instrument is fully customizable to fit almost any engine.
All the components of the Omnia family are equipped with a state-of-the-art, highly visible display, a powerful 32 bit microcontroller and the latest generation of solid state sensors and components to ensure reliability and accuracy over time.
Omnia RPM can be interfaced with the Rotax engines i series through the CAN bus
Up to 16 Omnia family instruments can be connected in cluster to form a communication network, making some data exchange operations simpler.
Included gauges:

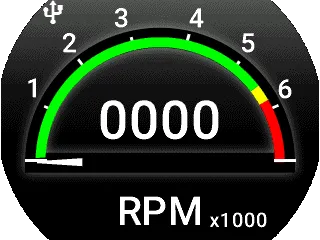

1 Tachometer
1 Chronometer
4 Hobbs meters
Last flight RPM peak memory
RPM memory peak ever
Interfaces:
Knob with pushbutton
2 CAN bus
Light Sensor input
USB 2.0 port
1 Tachometer input low level
1 Tachometer input high level
Can be connected in cluster with other Omnia57 instruments
Manufacturing:
Rugged case milled from solid aluminium
Powder-painted
100% manufactured and tested with automatic processes
Functions:
Visual Alarm on screen
Transistor Alarm output
Manual or Automatic Backlight dimmer
Easy software updating through the USB port
Technical specifications:
ab 469,90 €
inkl. 19 % MwSt. zzgl. Versandkosten
